Setup Raspberry Pi without Monitor & Keyboard
Requirements
- Raspberry Pi (any model)
- MicroSD card (8GB or larger)
- Power supply
Setup

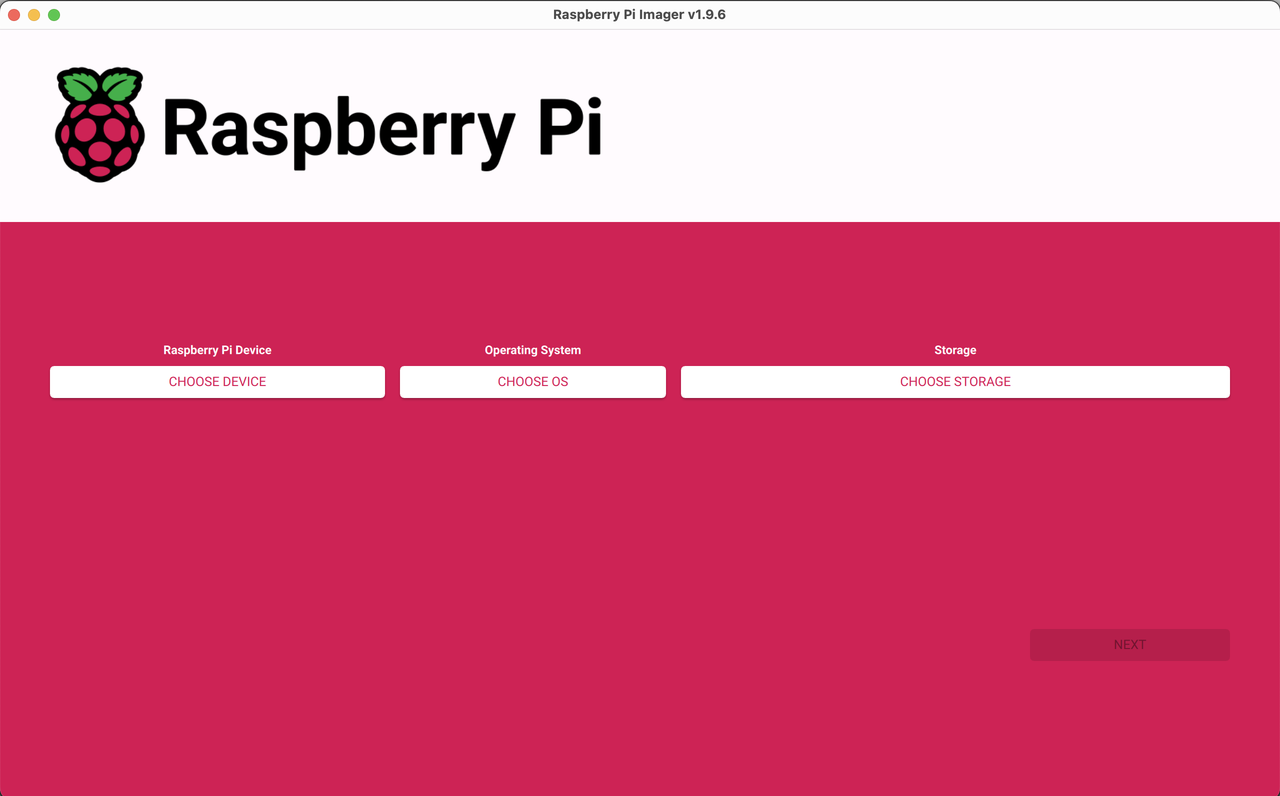

Download & install Raspberry Pi Imager from here.
After installation, connect SD Card to Computer, and start installation process.

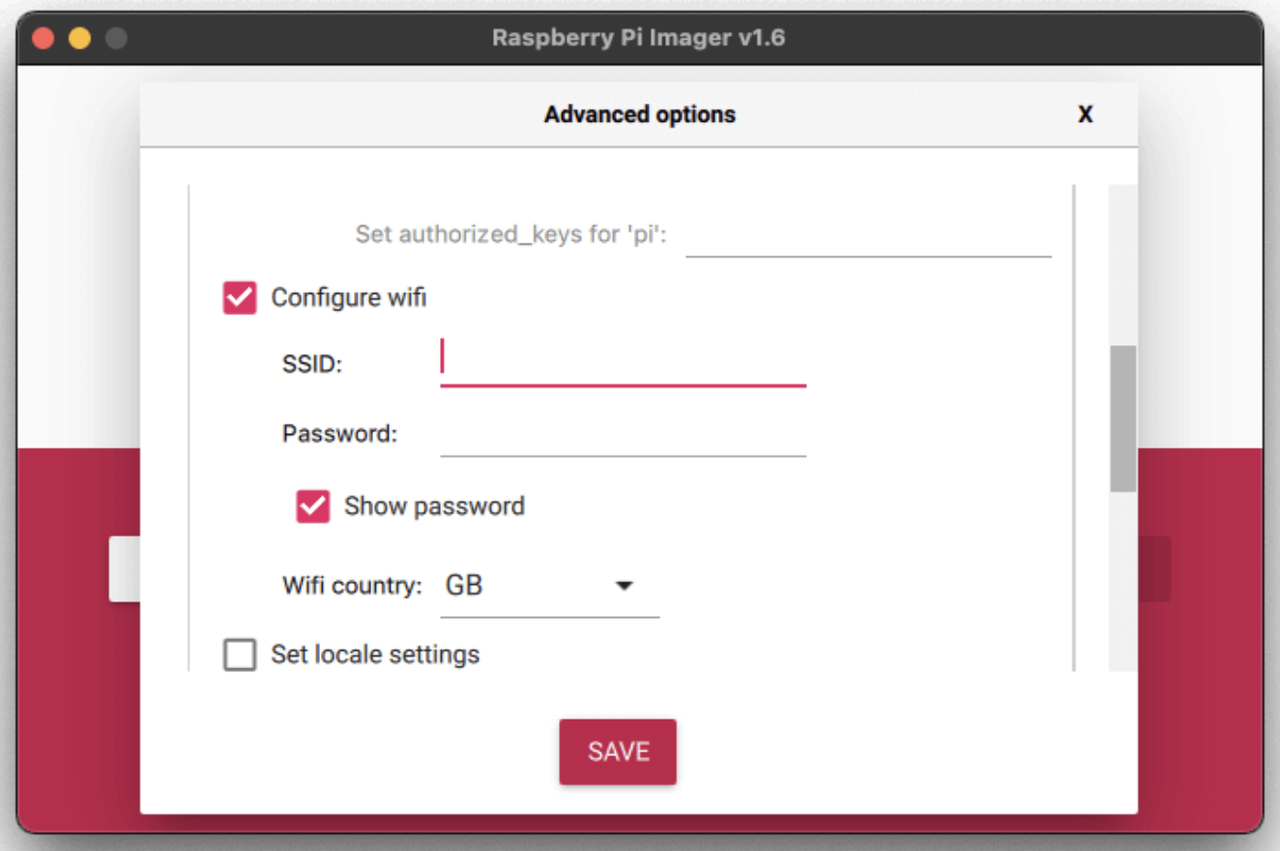

In the config step, setup WiFi credentials and enable ssh server as well.
Once the installation is complete, insert the SD card into the Raspberry Pi and power it on.
Find the IP Address
You can find the IP address of your Raspberry Pi by checking your router's connected devices list or using a network scanning tool like nmap
or arp
.
arp -an # or using nmap nmap -sn
Once you have the IP address, you can SSH into the Raspberry Pi.
ssh pi@<IP_ADDRESS>
Conclusion
When we don't have a monitor and/or keyboard, this process allows us to set up a Raspberry Pi headlessly. This is particularly useful for projects where the Pi will be used as a server or in a remote location.
Need further help with this? Feel free to send a message.
